DESCRIZIONE

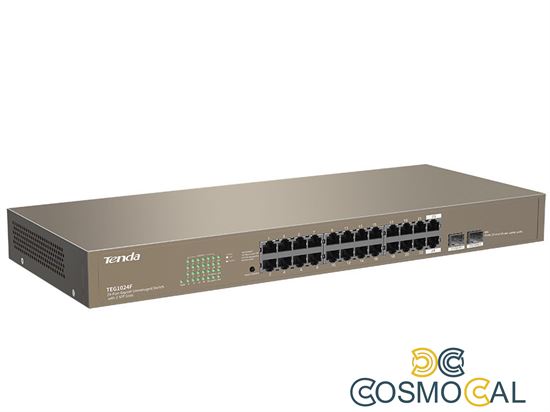

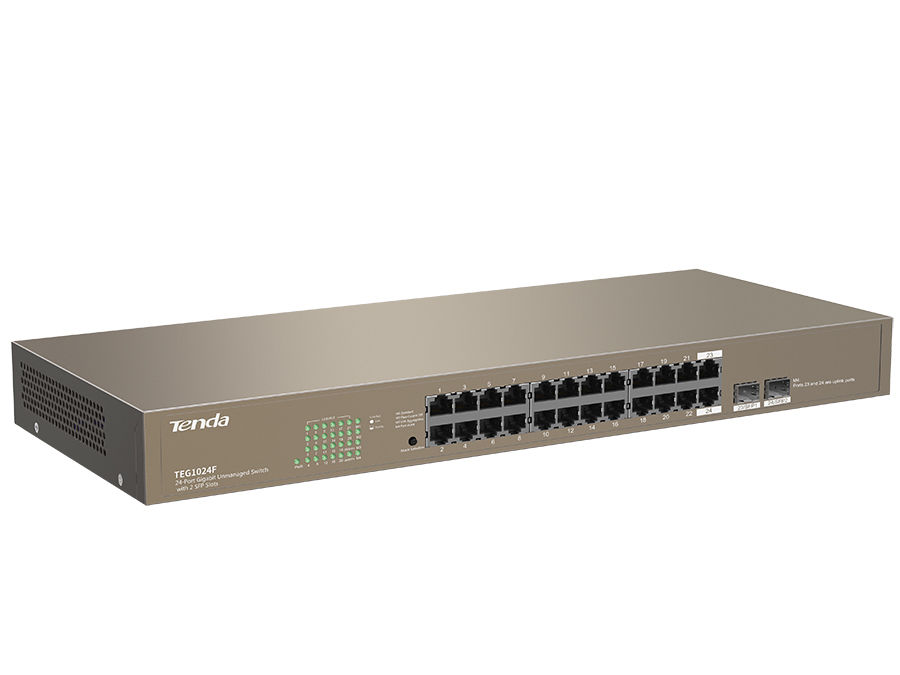

TEG1024F is a 24-port gigabit rackmount switch providing easy-to-use, cost-effective and fast network for IP surveillance projects, offices, workgroups and small and medium-sized enterprises. With 2 gigabit SFP combo ports used to connect to Tenda optical modules, it can be used for long distance networking up to 20 km. TEG1024F also offers a data rate in full duplex of as high as 2000 Mbps, ensuring fast transmission of large files and smooth playback of videos. With professional lightning protection circuit, the switch provides 6 kV lightning protection for all the RJ45 ports and the power module, ensuring stability and reliability of the switch. TEG1024F allows users to change its work modes among standard (default mode), flow control off, link aggregation and port VLAN, fitting multiple network environments, making it the perfect choice for you to extend or upgrade your high-speed, stable gigabit wired network at long distance.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Networking | |
| Cable types supported | Cat3,Cat5,Cat5e |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| 10G support | No |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 1.488 Mpps |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Certification | CCC, CE , FCC , RoHS |
| Rack mounting | Yes |
| Performance | |
| Buffer size | 256 KB |
| Power | |
| Power consumption (max) | 13 W |
| Surge protection voltage | 6 kV |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Surge protection | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Certificates | |
| Certification | CCC, CE , FCC , RoHS |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Compatible operating systems | Windows 8 32/64 bit , Windows 7 32/64 bit , Windows xp 32/64 bit , Linux , MAC OS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 178 mm |
| Height | 44 mm |
| Packaging data | |
| Rack mount kit | Yes |
| Rubber feet | Yes |
| User guide | Yes |
| Cables included | AC |
| Packaging content | |
| Rack mount kit | Yes |
| Rubber feet | Yes |
| User guide | Yes |
| Cables included | AC |
