DESCRIZIONE

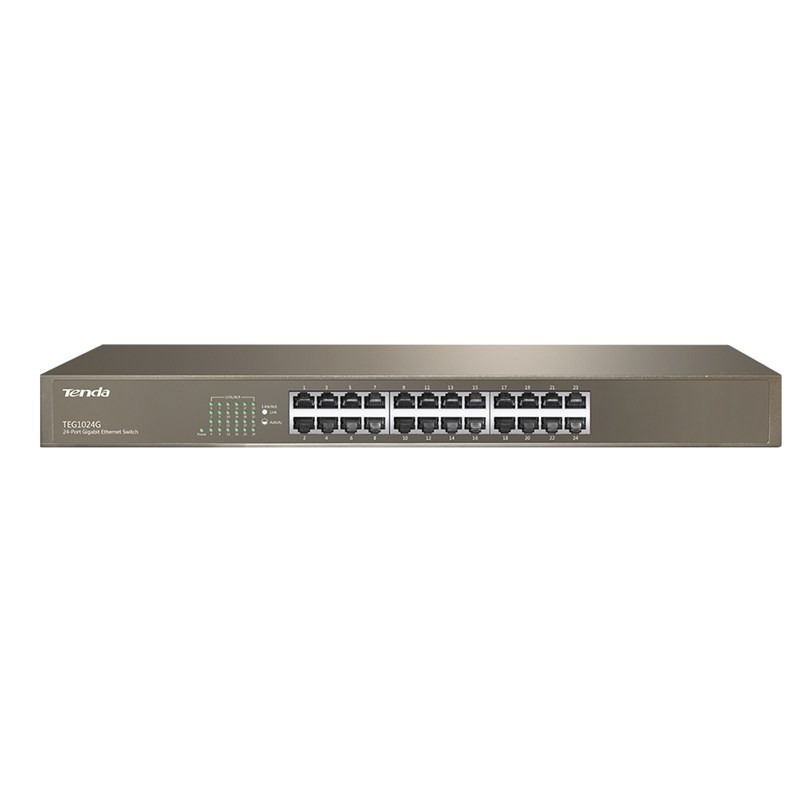

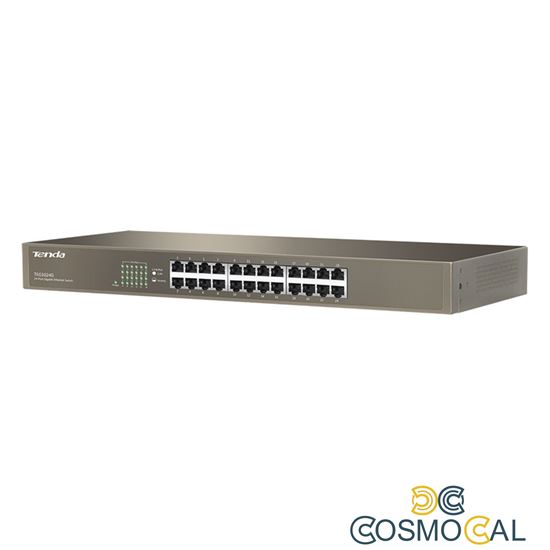

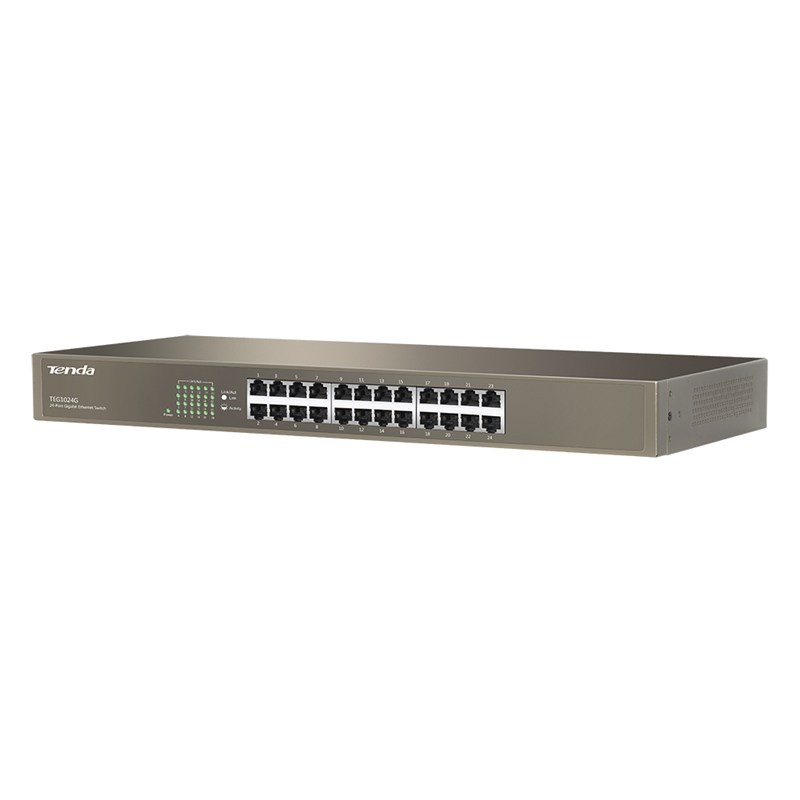

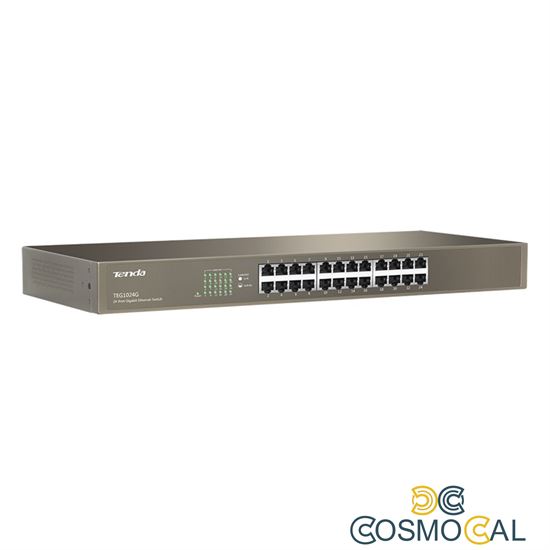

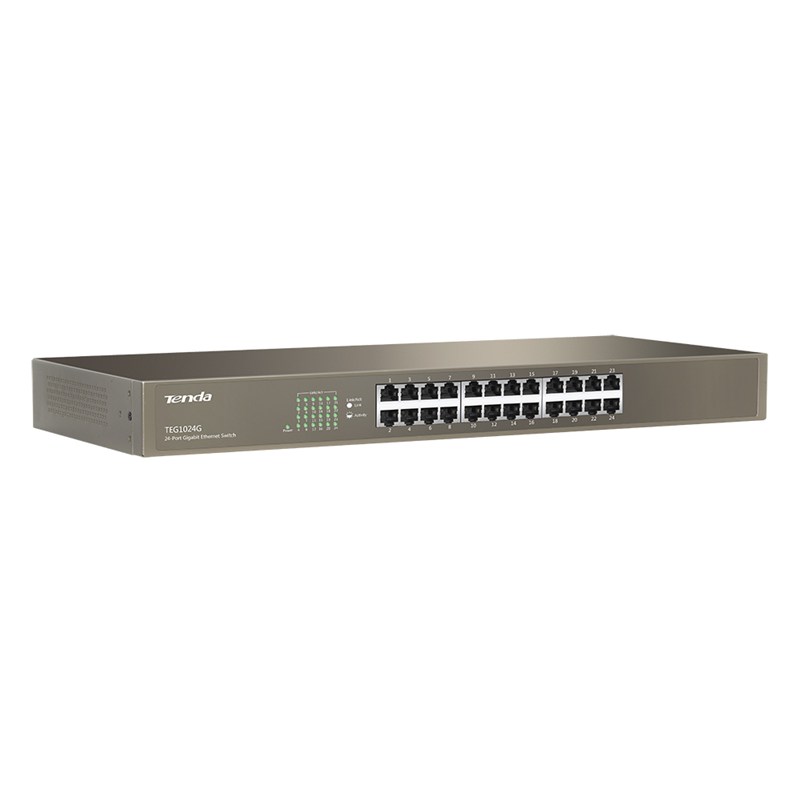

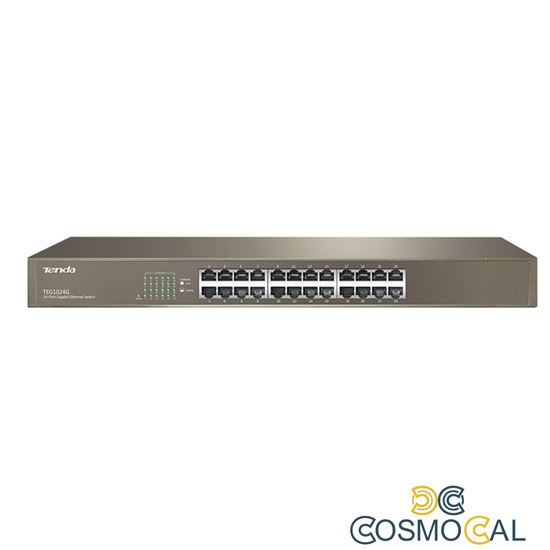

TEG1024G is a 24-port gigabit unmanaged desktop/rack switch designed for video surveillance in offices, work groups,and SMEs for easy, economical and high-speed internet purposes. Its full duplex transmission rate can reach up to 2000 Mbps, ensuring the timely transfer of large files as well as smooth streaming videos. The professional integrated lightening protection circuit, the built-in power supply module, and all the 24 ports could withstand 6 kV lightning surge, ensuring the switch to run stably. TEG1024G is your ideal choice for extension, or upgrade to high-speed and stable gigabit wired network.
Stable connection for 7*24
24*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.
Excellent lightning protection of ports
Professional integrated lightning protection circuit enables all the 16 ports to provide IV-class (6 kV in common mode) lightning protection, effectively decreasing the damage rate to the ports by lightning surge.
Professional lightning protection for power supply
The built-in power supply module is designed with enhanced lightning protection, which can withstand 6 kV lightning surge, 3 times higher than other ordinary switches, effectively protecting the switch from being damaged by adverse thunderstorm.
Innovative design

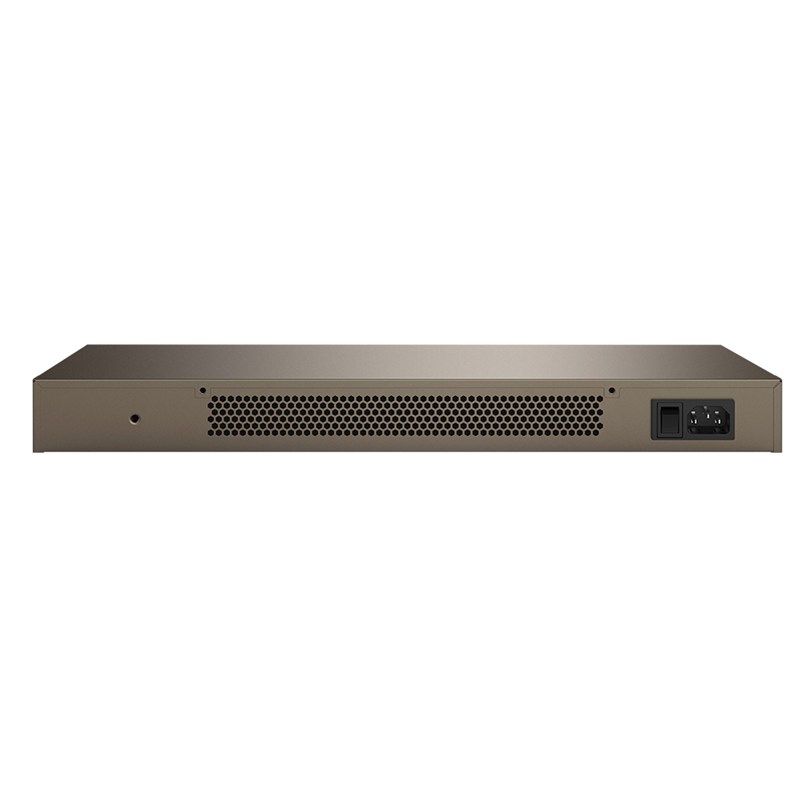

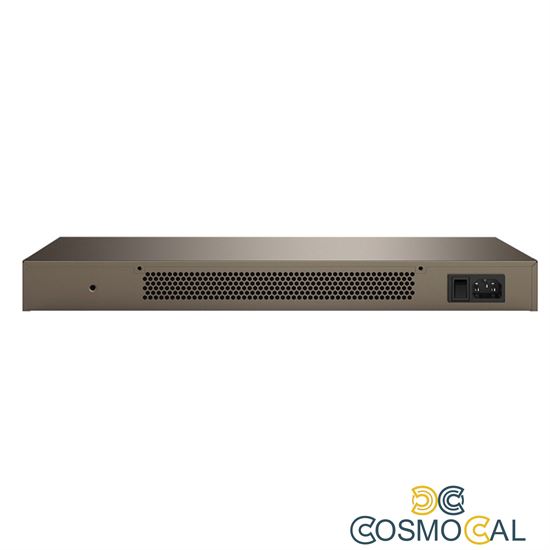

Full steel housing and plating through holes in three faces allow higher-efficient heat dissipation; fanless design ensures the noiselessness and dust free, harmoniously fitting into the offices; 19-inch size makes it mountable both on desktop and rack and plug and play function makes it easy for use.
Standard&Protocol
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Interface
24*10/100/1000M auto-negotiation RJ45 ports (Auto MDI/MDIX)
Transmission Media
10Base-T: Cat. 3 UTP or better 100Base-TX: Cat.5 UTP or better
1000Base-T: Cat.5e UTP or better
1000Base-T: Cat.5e UTP or better
Forwarding Speed
10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps
Power Supply
Input: AC:100-240V
50/60Hz
50/60Hz
Lightning Protection
6kV in Common Mode Protection for all ports
Lightning Level 6kV in Common Mode, 4kV in Differential Mode Protection for power supply
Lightning Level 6kV in Common Mode, 4kV in Differential Mode Protection for power supply
Dimension
440mm *178mm *44mm（L*W*H）
LED indicator
1* Power, 24* Link/Act
Switching Capacity
48Gbps
MAC Address Table
8K
Power Consumption
Maximum : 13W (220V)
Store & Forward
Yes
Access Control
CDMA/CD
MAC Address Learning
Automatic update
Temperature
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Storage Temperature: -40℃~70℃
Humidity
Operating Humidity: 10%~90% non-condensing
Humidity Storage Humidity: 5%~90% non-condensing
Humidity Storage Humidity: 5%~90% non-condensing
Certification
CE , FCC , RoHS
Related Products
TEG1008D 8-Port Gigabit Ethernet Switch
S16 16-Port 10/100Mbps Desktop Switch
TEG1016D 16-Port Gigabit Ethernet Switch
S16 16-Port 10/100Mbps Desktop Switch
TEG1016D 16-Port Gigabit Ethernet Switch
Compatible OS
Windows 8 32/64 bit , Windows 7 32/64 bit , Windows xp 32/64 bit ,Compatible OS Linux , MAC OS
Package Content
24-Port Gigabit Ethernet Switch
Power cord
user Guide
Power cord
user Guide
