DESCRIZIONE

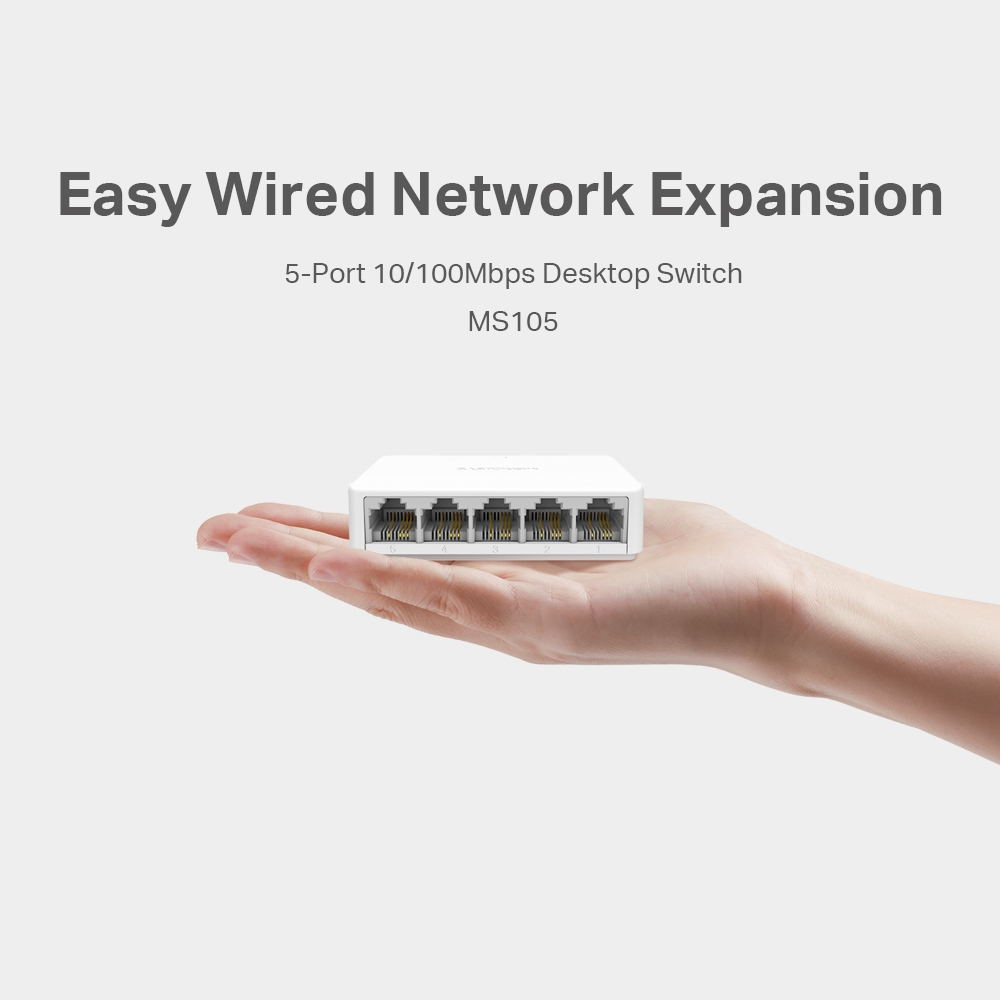

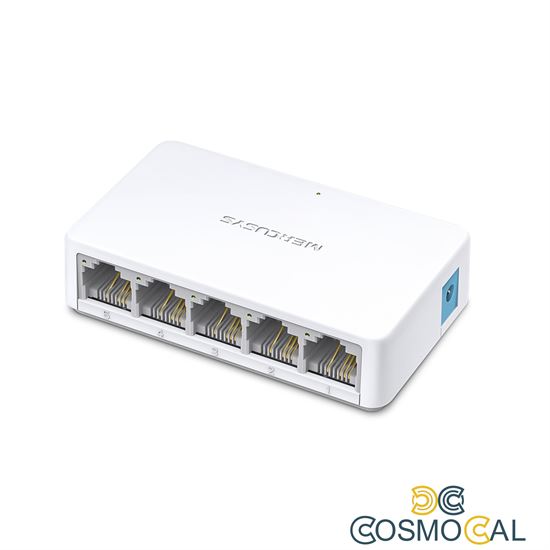

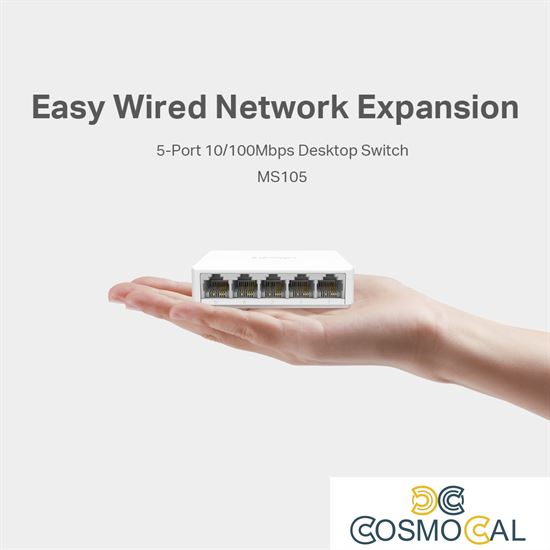

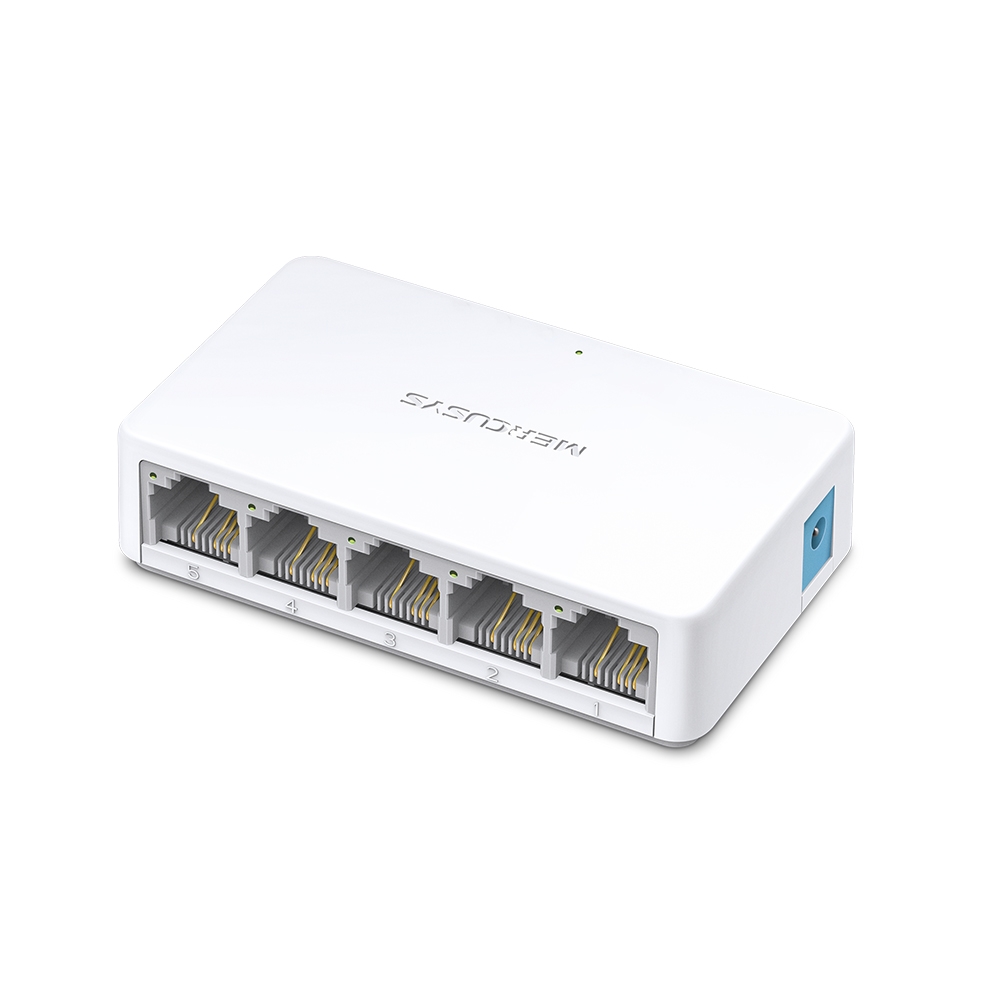

Switch Desktop 5-Porte 10/100Mbps V2.20
- 5 porte 10/100Mbps RJ45, con auto-negoziazione e auto MDI / MDIX
- Estensione semplice della rete cablata
- Design compatto per posizionamento flessibile
- Plug and play: nessuna configurazione richiesta
Software
Transfer Method
Store and forward
Hardware

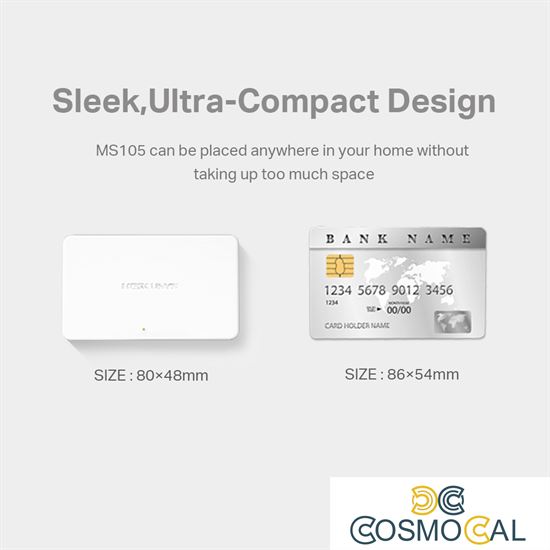

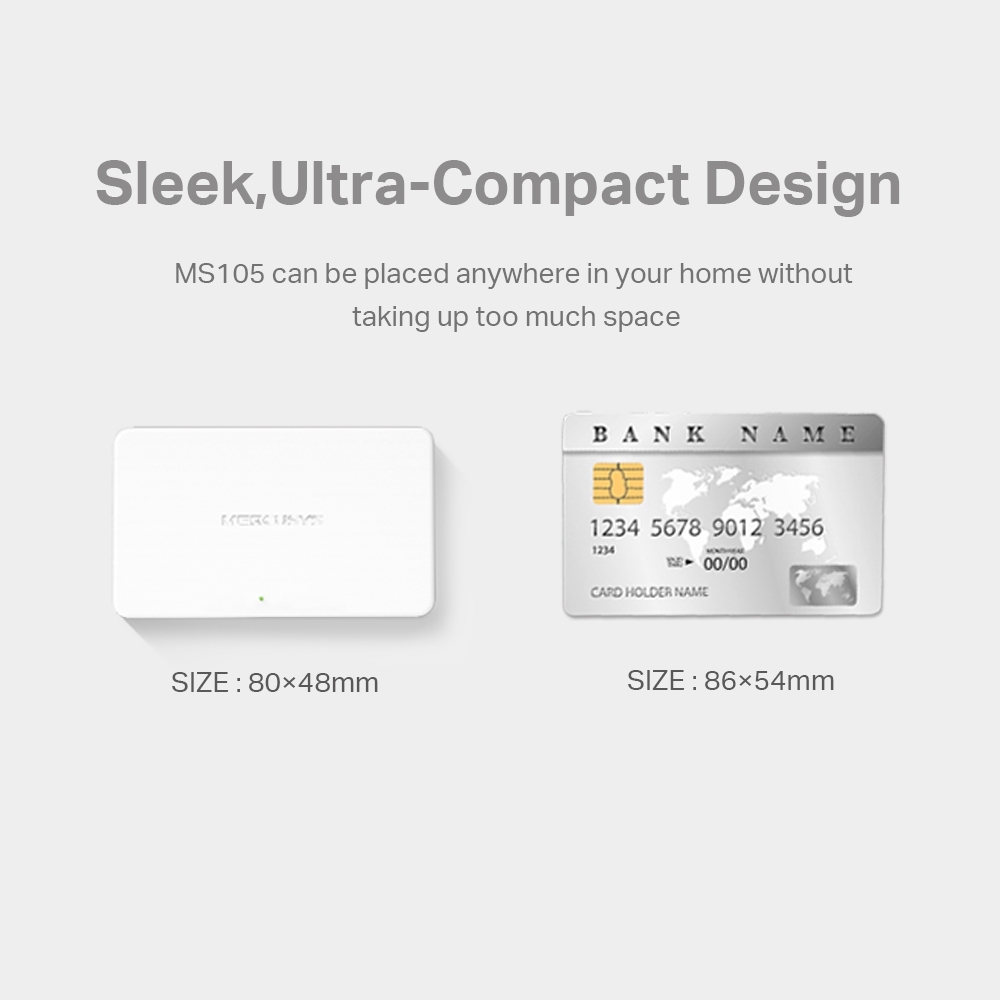

Dimensioni (W X D X H)
82 x 49 x 21 mm
Interfaces
5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
External Power Supply
External power adapter
(Output: 5.0VDC/0.6A)
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Fan Quantity
Fanless
Data Rates
10/100Mbps at half duplex
20/200Mbps at full duplex
Buffer Capacity
768Kb
Jumbo Frame
2KB
Switching Capacity
1Gbps
LED
Ethernet (1, 2, 3, 4, 5), Power
Other
Certifications
CE, RoHS

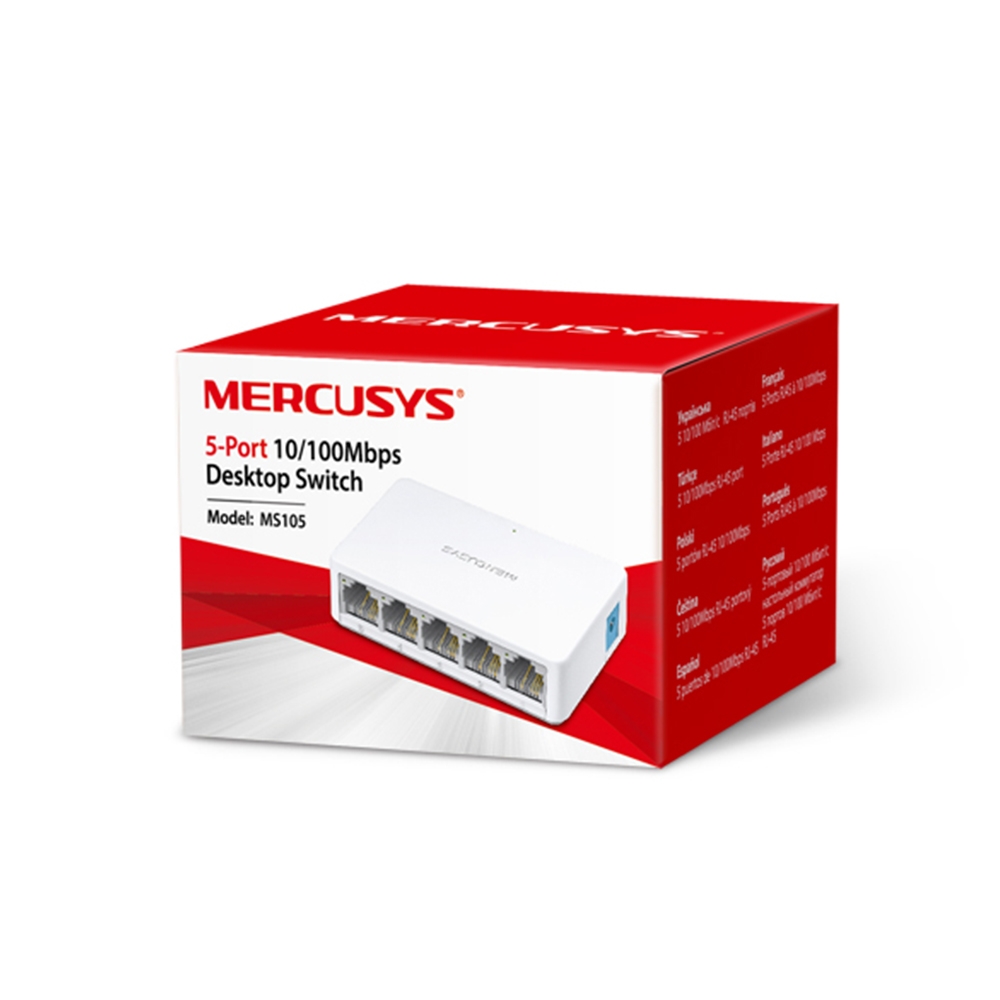

Package Contents
5-Port 10/100Mbps Desktop Switch
MS105
Power adapter
Quick installation guide
Environment
Operating temperature: 0°C~40°C (32°F~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5%~90% non-condensing
