8-Port Gigabit Easy Smart PoE Switch with 24-Port PoE+

0

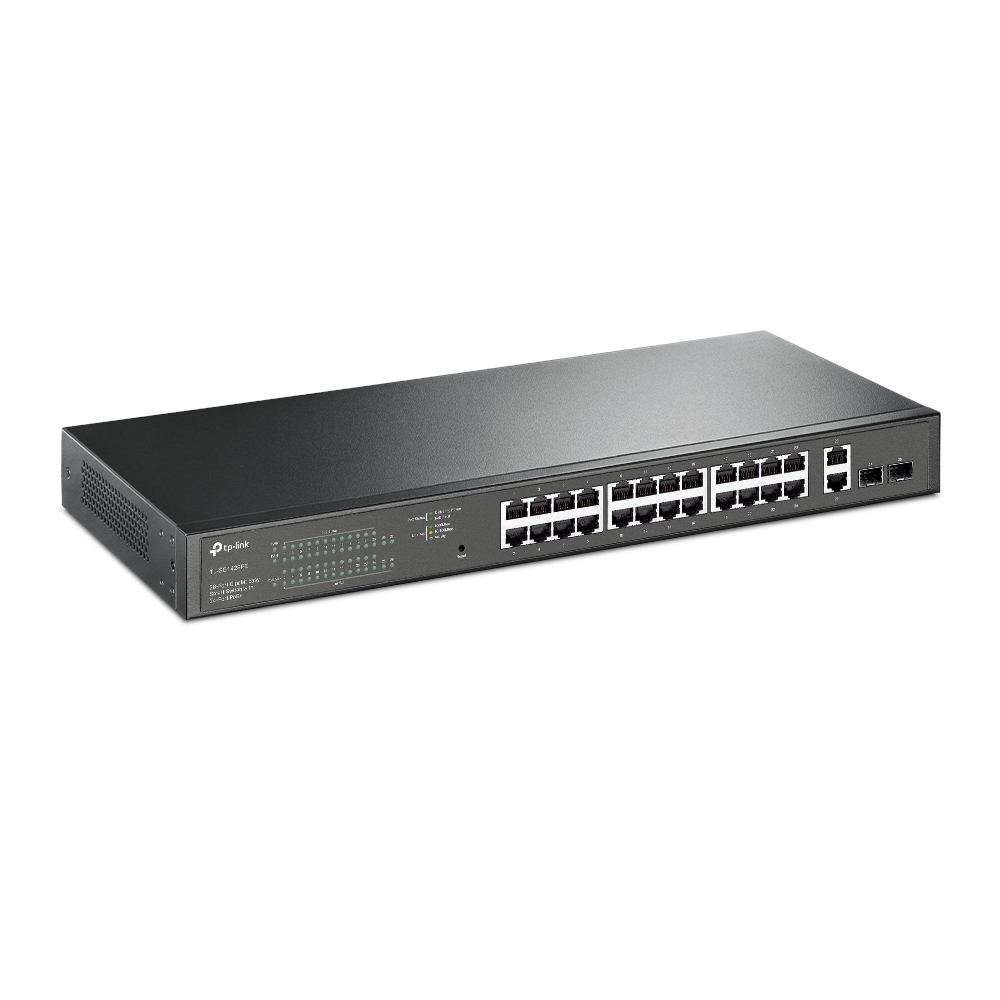

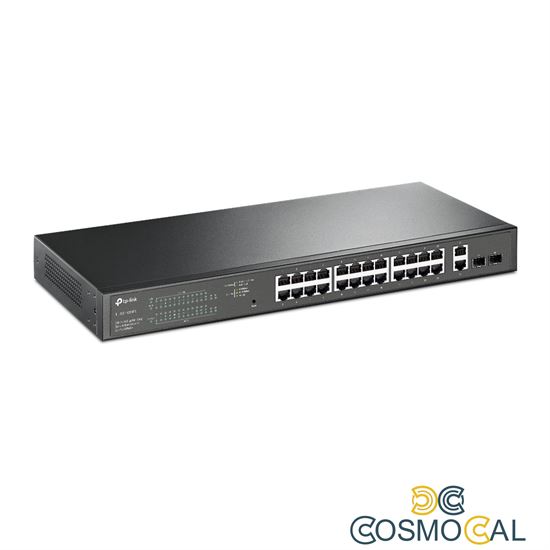

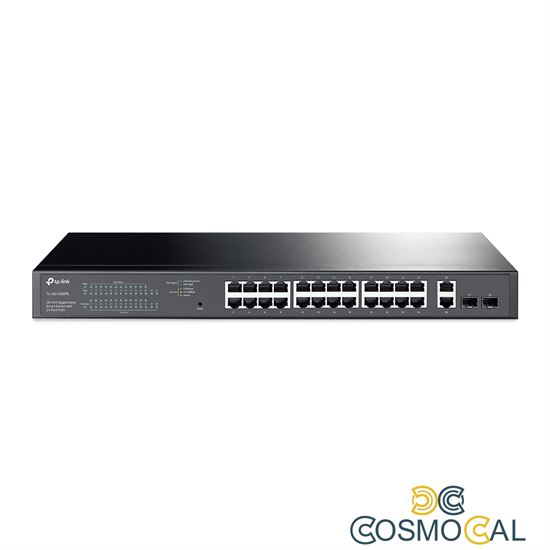

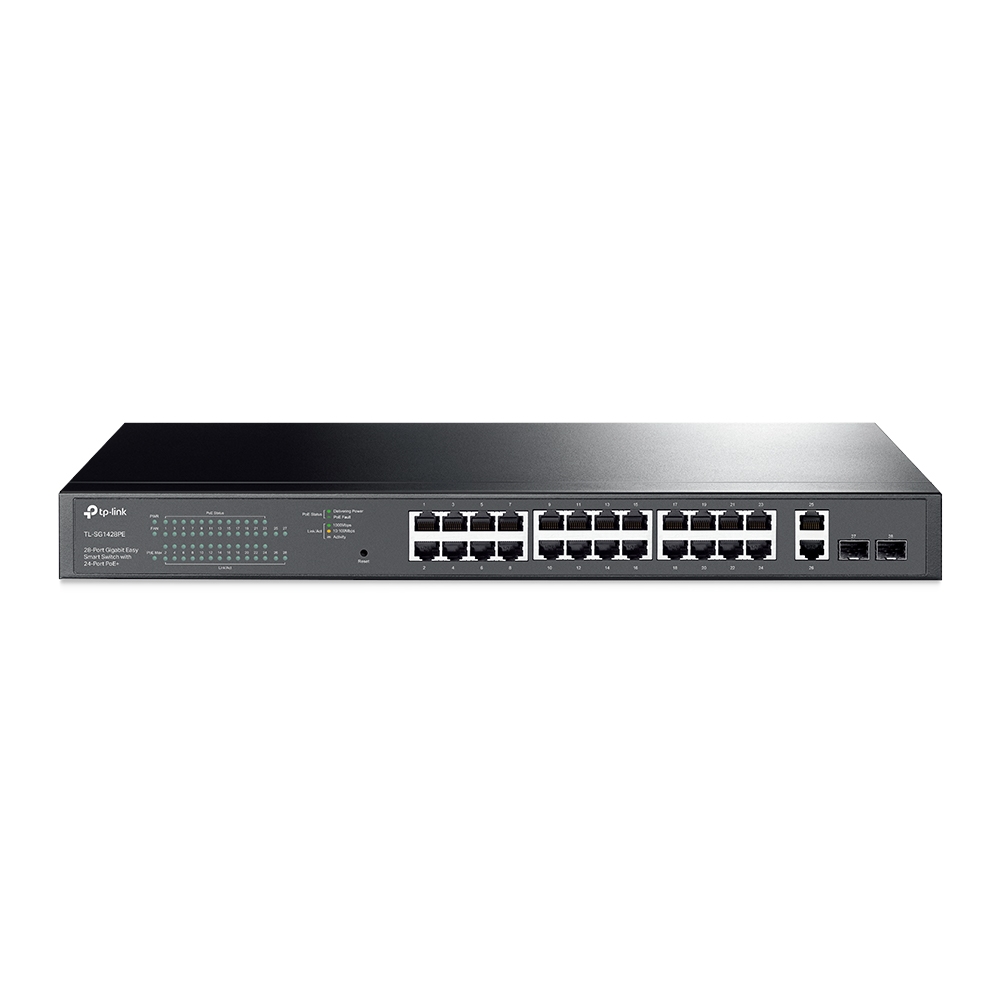

8-Port Gigabit Easy Smart PoE Switch with 24-Port PoE+

Codice:
TL-SG1428PE
Marchio:
TP-Link
Garanzia:
12
Dimensioni:
0
Peso:
4250
Pezzi per Confezione:
Tue, 02 Jan 2024 00:

DESCRIZIONE

TL-SG1428PE

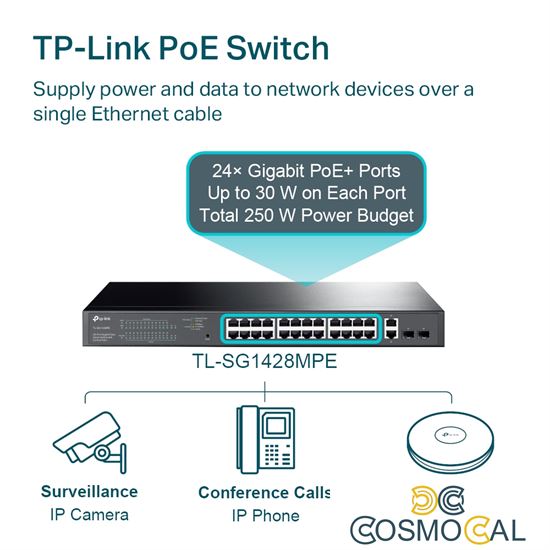

Switch JetStream Easy Smart 28 Porte Gigabit di cui 24 PoE+

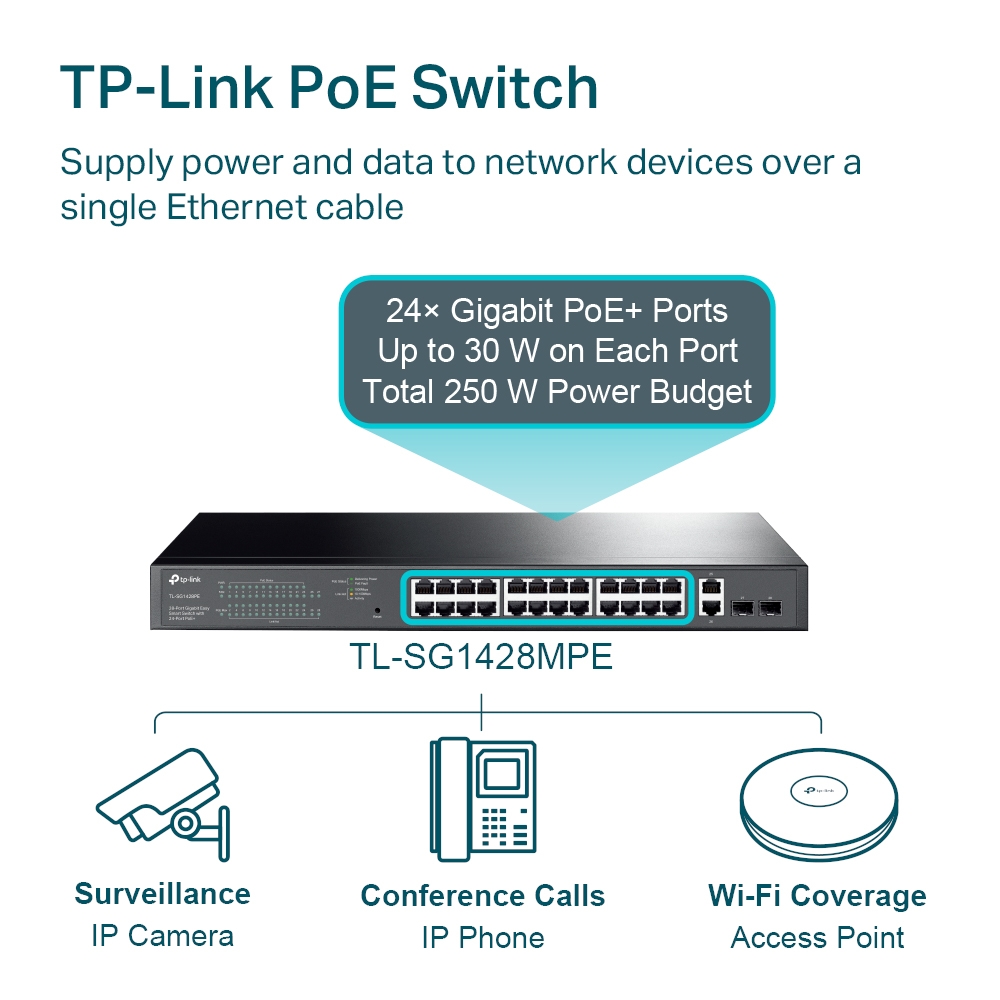

  • Switch Gigabit - 24 Porte PoE+ 10/100/1000Mbps RJ45 PoE+ e 2 slot SFP
  • Power Budget PoE - Fino a 250 W*, ideale per applicazioni in sistemi di videosorveglianza.
  • Priority Mode - Assicura la qualità di applicazioni tempo-sensibili come video e voice-streaming.
  • PoE Auto Recovery - Consente al sistema di mantenere stabile l'operatività dei dispositivi PoE connessi alla rete.
  • Tecnologie avanzate - QoS per esperienze di navigazione senza interruzioni e IGMP Snooping per ottimizzare il traffico IPTV.
  • Intelligent Power Management - Protegge lo switch dai sovraccarichi.





CARATTERISTICHE HARDWARE
Standard e protocolli IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interfaccia 26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports
Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF

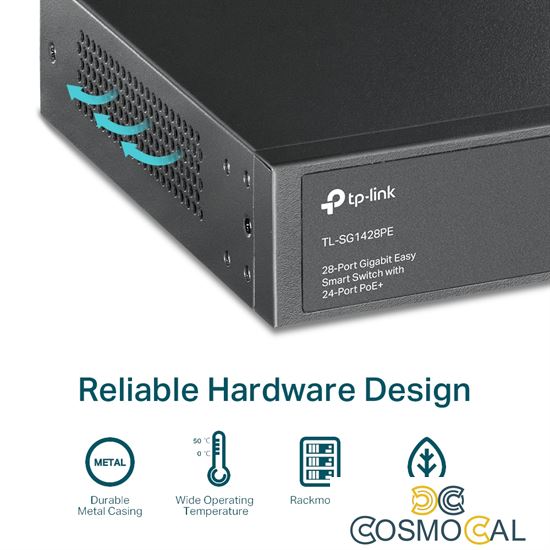

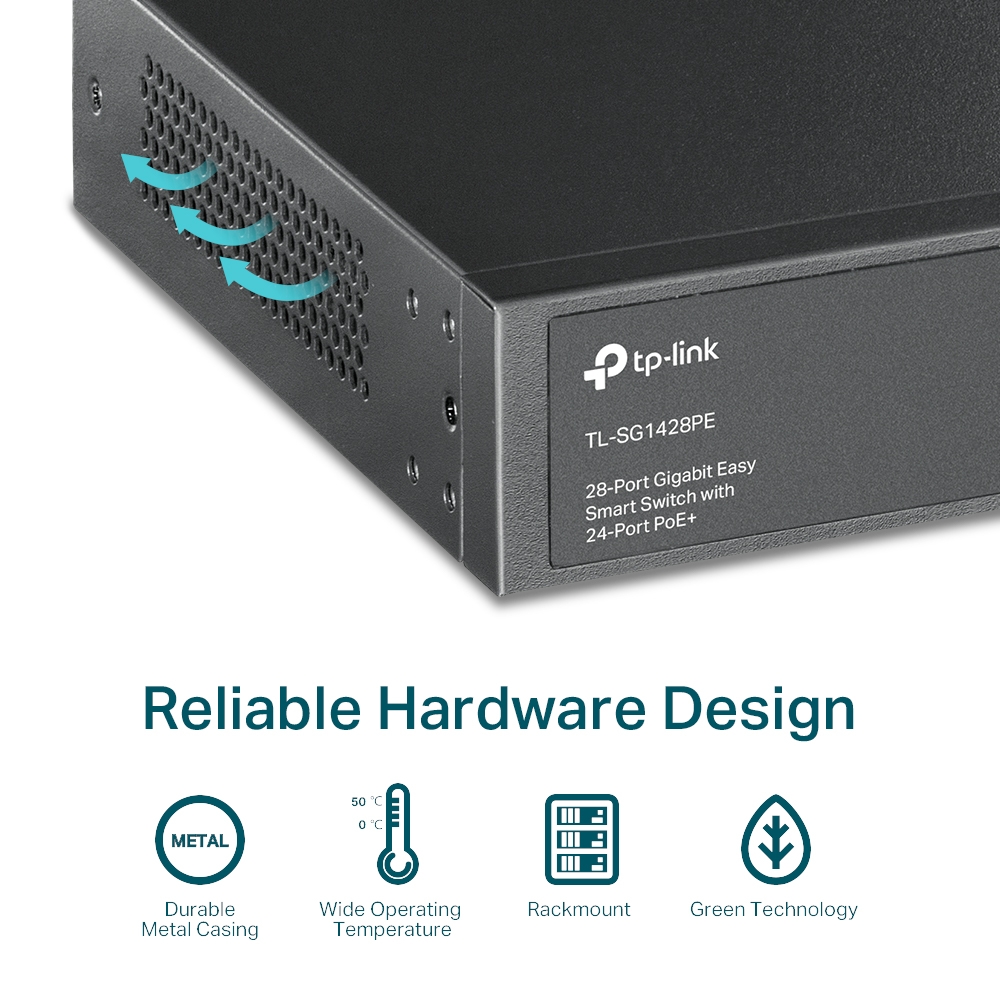

Numero ventole 2 Fans
Physical security lock Yes

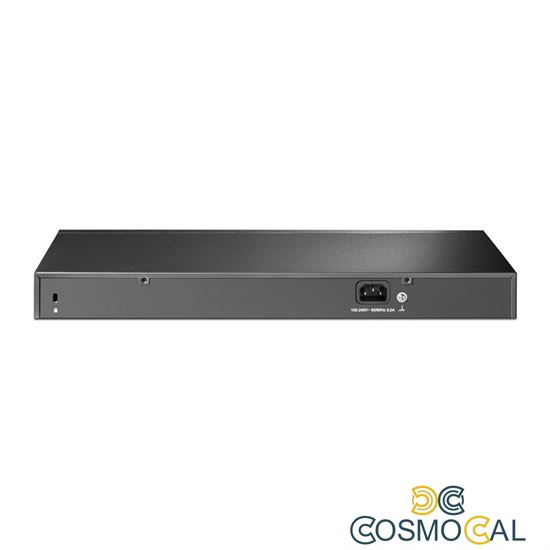

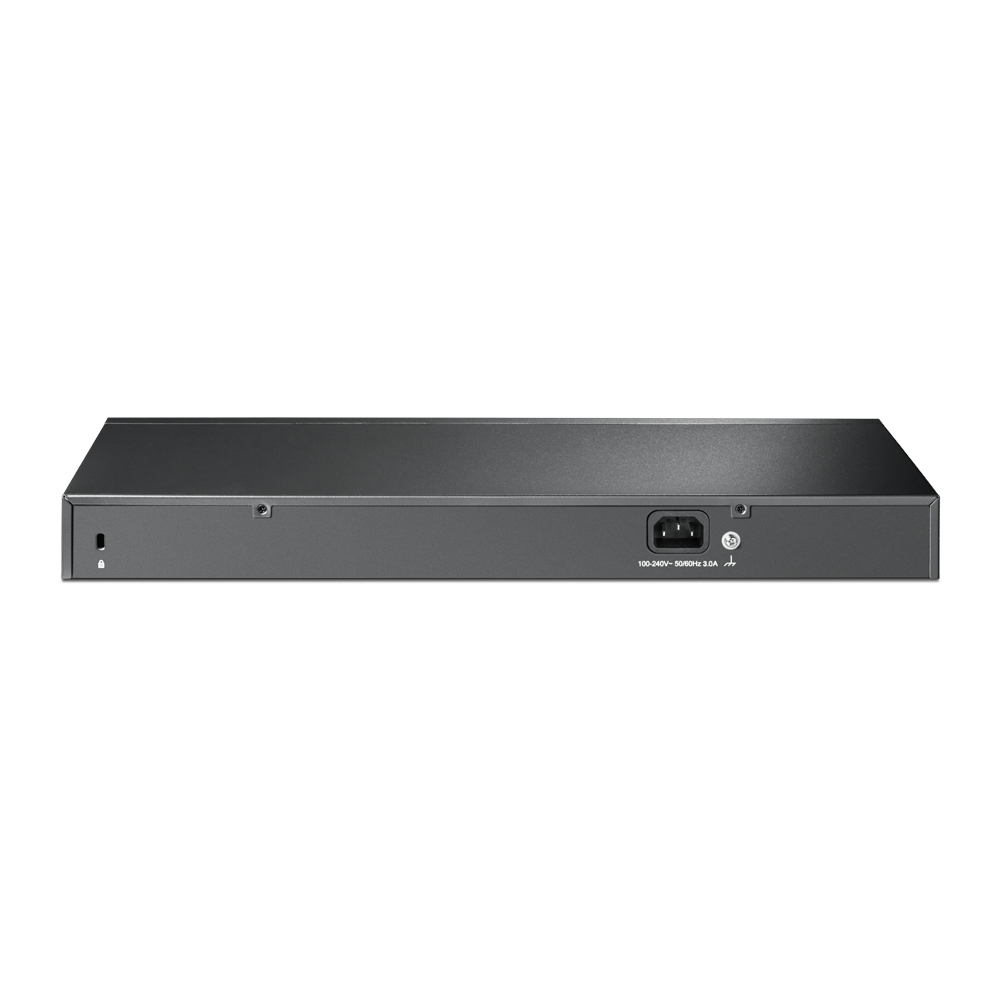

Alimentazione 100-240V AC, 50/60 Hz
Porte PoE+ Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Dimensioni ( L x P x A ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Tipo di montaggio Rack Mountable
Max Power Consumption 27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation 92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)
PRESTAZIONI
Capacità di switching 56 Gbps
Packet Forwarding Rate 41.7 Mbps
Tabella ARP 8K
Buffer (pacchetti) 4.1 Mbit
Jumbo frame 9 KB
CARATTERISTICHE SOFTWARE
QoS (Quality of Service) Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
Funzionalità L2 IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
VLAN Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Gestione Web-Based GUI
Easy Smart Configuration Utility
Metodo di trasmissione Store-And-Forward
ALTRO
Certificazione CE, FCC, RoHS
Contenuto della confezione TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Ambiente Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
