DESCRIZIONE

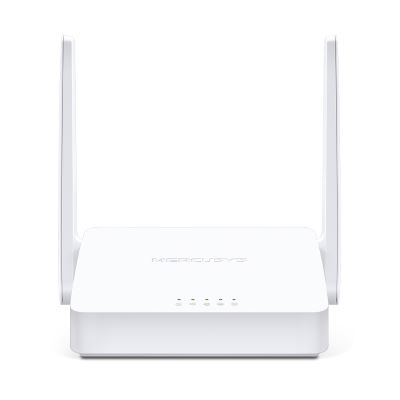

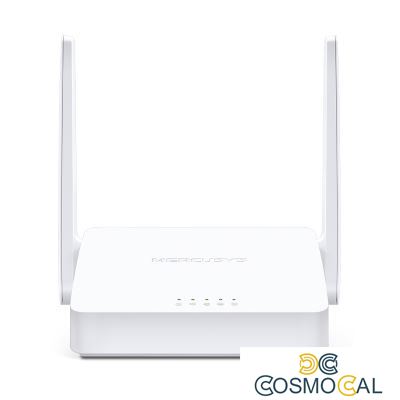

MERCUSYS MW300D
300Mbps Wireless N ADSL2+ Modem Router
- Wi-Fi veloce - wireless 300 Mbps ideale per video streaming HD
- Ampia copertura - Due antenne esterne per una copertura Wi-Fi estesa in ogni direzione
- Massima compatibilità - Compatibile con ADSL2+/ADSL2/ADSL
- Configurazione semplice –interfaccia di configurazione web semplice ed immediata
Wireless
Wireless Standards
IEEE 802.11b/g/n
Frequency
2.4 - 2.4835GHz
Signal Rate
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
• 270M: -73dBm@10% PER • 11M: -90dBm@10% PER
• 130M: -75dBm@10% PER • 6 M: -94dBm@10% PER
• 54M: -77dBm@10% PER • 1 M: -96dBm@10% PER
Transmission Power
<20dBm (EIRP)
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio
Software
DHCP
Server
Hardware
Dimensioni (W X D X H)
114 x 94 x 26 mm
Button
WPS/Reset Button
External Power Supply
9V/0.6A
Tipologia di Antenna
2× External Antennas

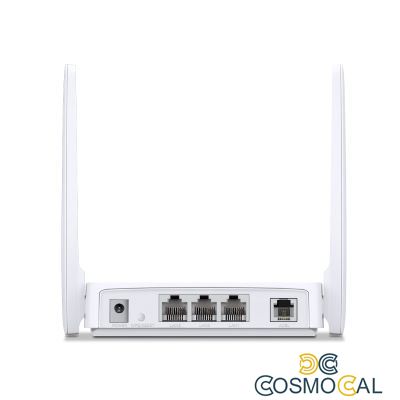

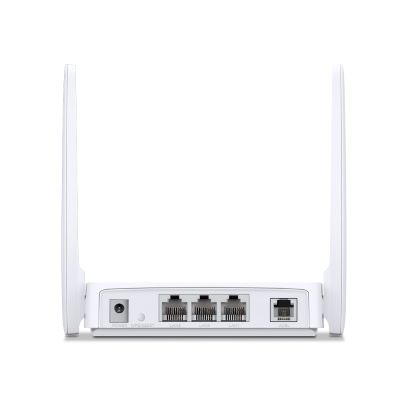

Ethernet Ports
3*10/100Mbps LAN Ports
1*RJ11 Port
Other

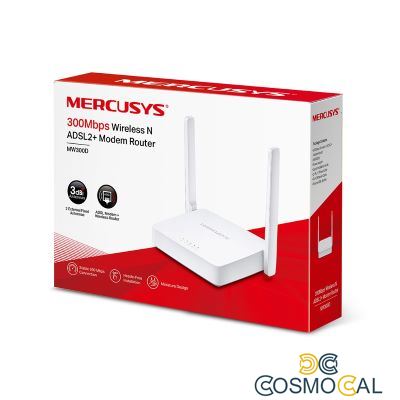

Package Contents
• 300Mbps Wireless N ADSL2+
Modem Router (MW300D)
• Power Adapter
• Quick Installation Guide
• 2× RJ11 Phone Cable
• RJ45 Ethernet Cable
• External DSL Splitter
Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
