DESCRIZIONE

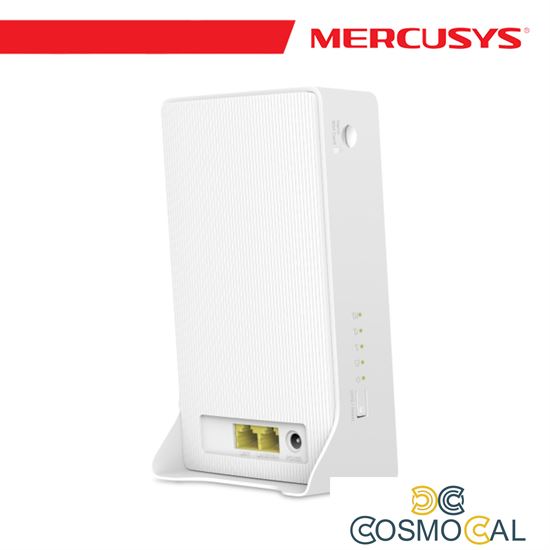

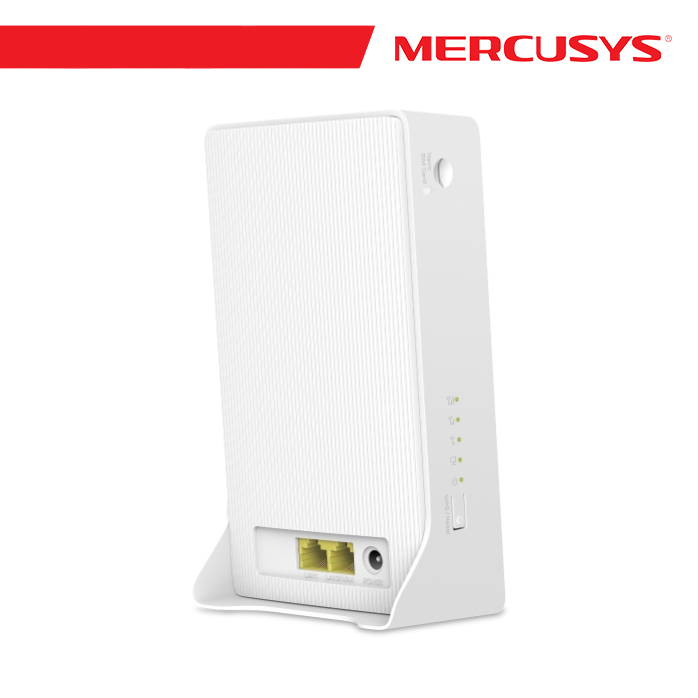

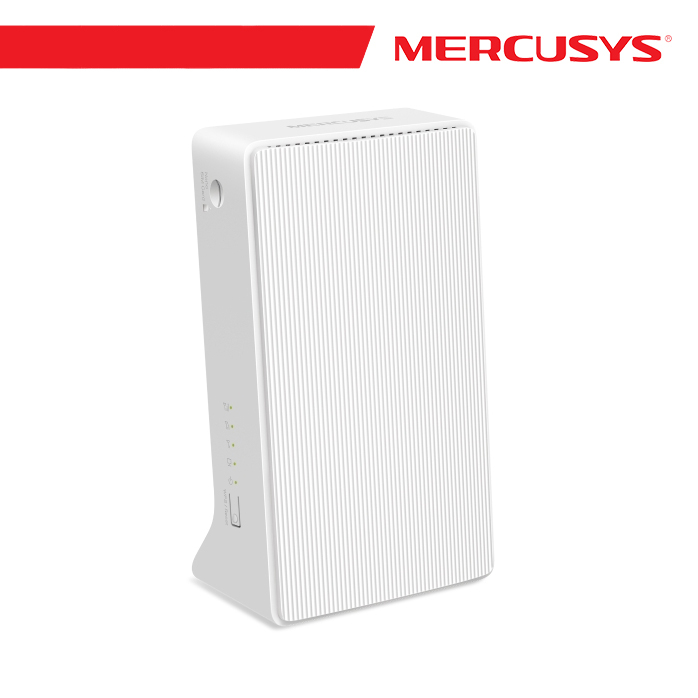

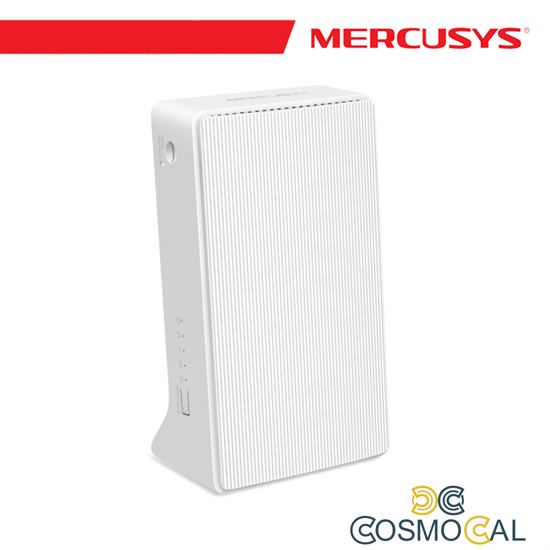

MB230-4G
Router 4G+ Cat6 Wi-Fi Dual Band AC1200
- 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.

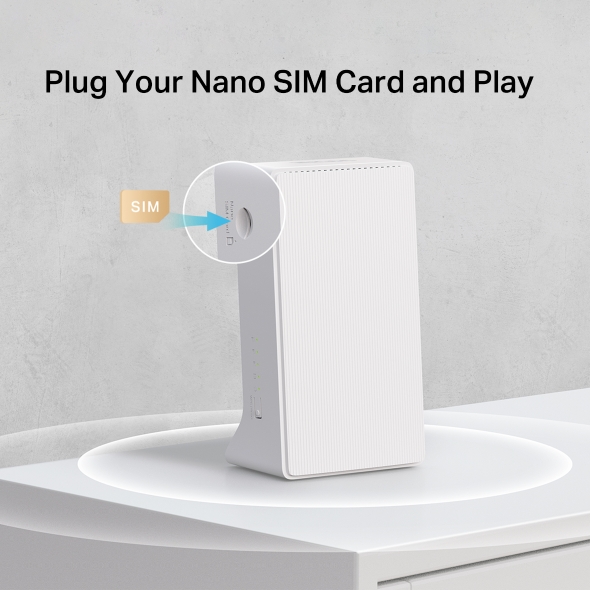

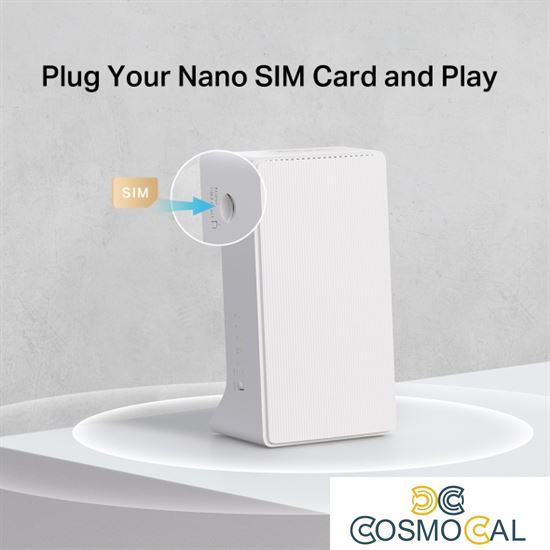

- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
- Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- Simultaneous Connection– Enjoy and share internet access with up to 64 Wi-Fi devices.
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
Wireless Standards
IEEE 802.11ac/a/b/g/n
Frequency
5 GHz, 2.4 GHz
Signal Rate
867 Mbps at 5 GHz
300 Mbps at 2.4 GHz
Reception Sensitivity
11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm
Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security
WPA-PSK / WPA2-PSK / WPA3-SAE
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
Wireless
DHCP
Server
Software
Dimensioni (W X D X H)
95×61.05×165.97 mm
Interfaces
1× Gigabit LAN/WAN Port
1× Gigabit LAN Port
1× Nano SIM Card Slot
Button
WPS/Reset Button
Network Type
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
Hardware
Package Contents
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB230-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
