DESCRIZIONE

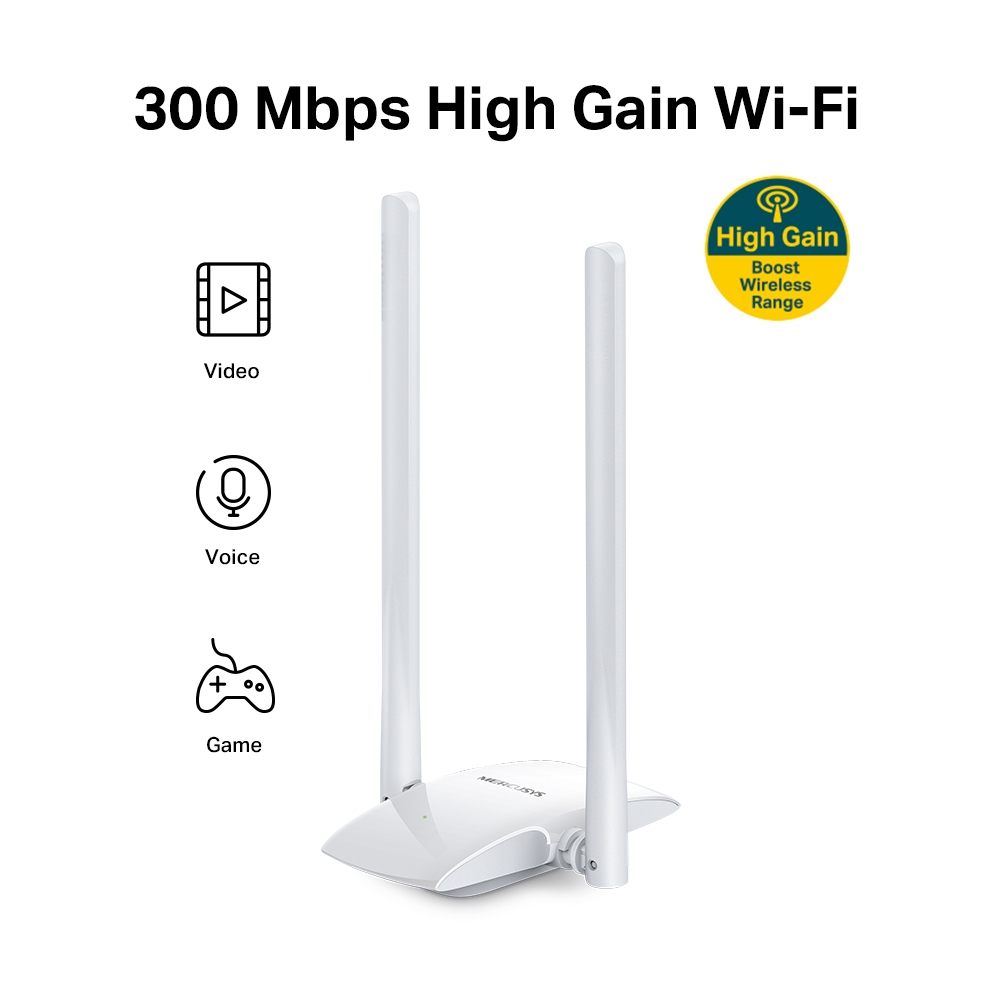

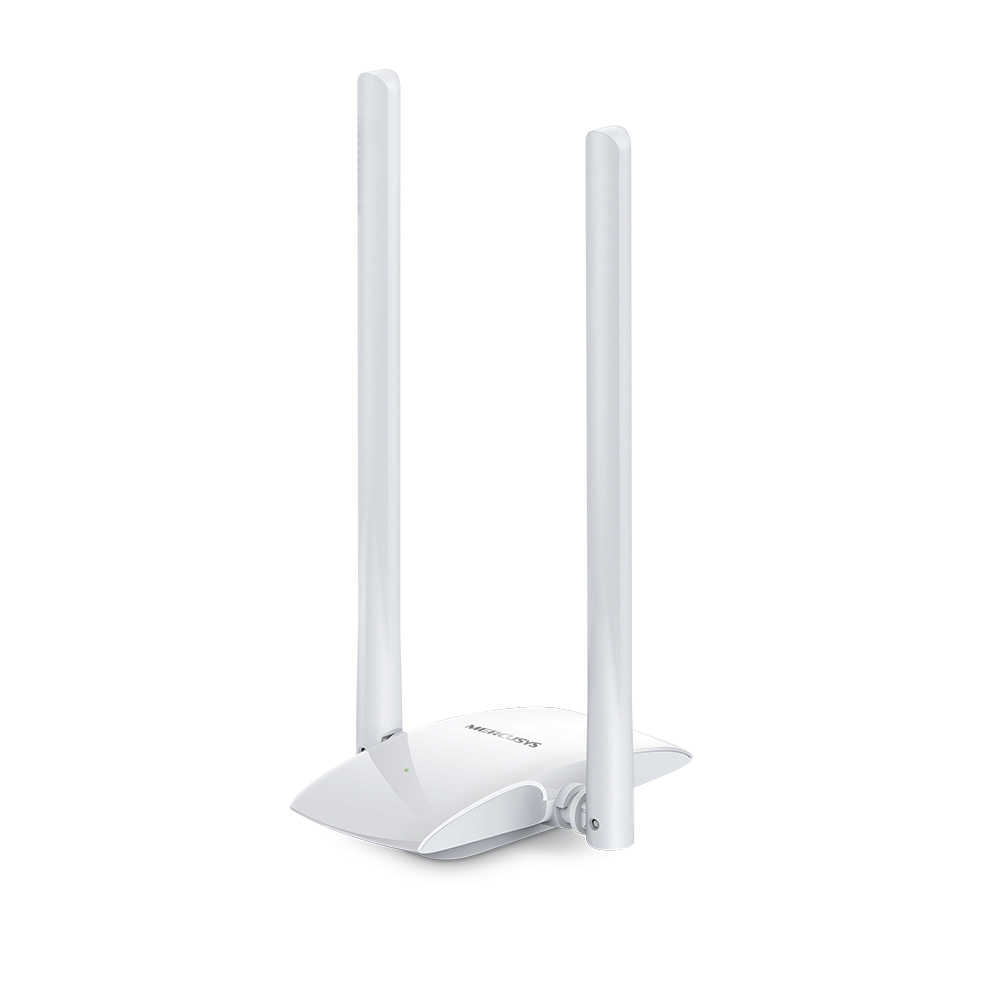

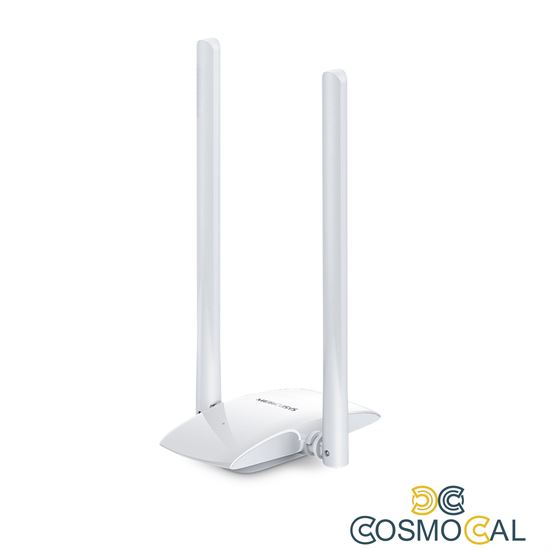

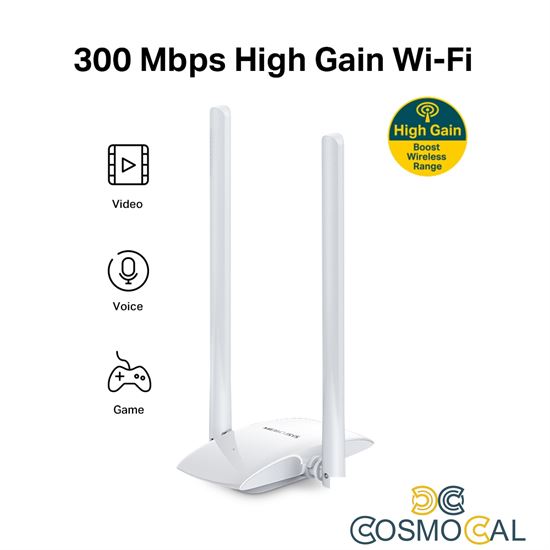

Mercusys MW300UH
Scheda Wireless USB Wi-Fi N300 con antenne alto guadagno
- Scheda di rete Wi-Fi N300 - Connessione Wi-Fi fino a 300Mbps in 2.4Ghz per PC cablati

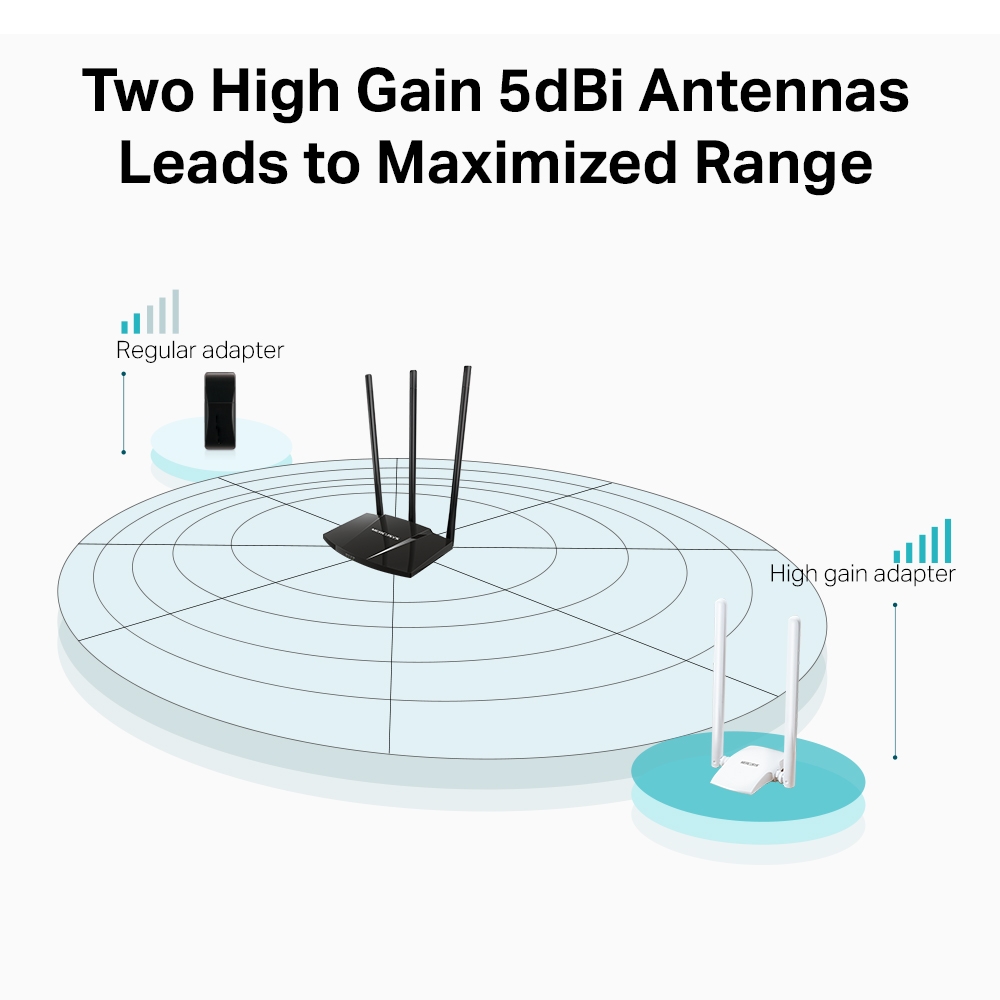

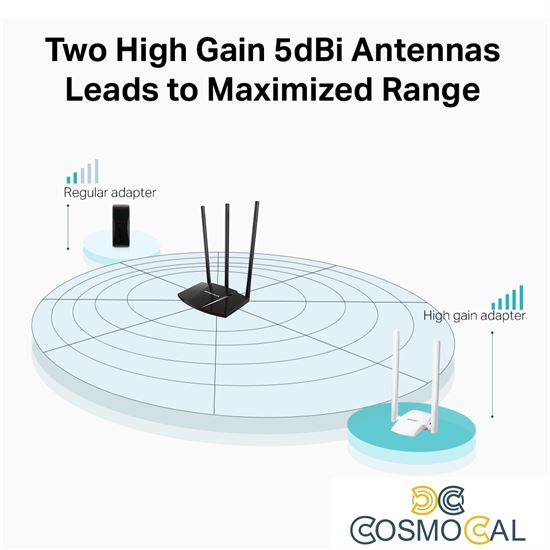

- Antenne ad alto guadagno - Due antenne 5dBi ad alto guadagno aumentano la capacità di ricezione del segnale Wi-fi del router
- 2x2 MIMO - Maggiore velocità di connessione

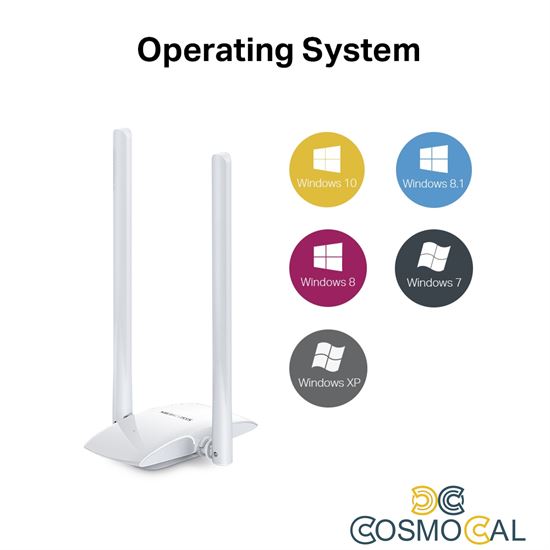

- Compatibilità - Supporto Windows 10/8.1/8/7/XP (32/64bit)
Wireless
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.400 - 2.4835 GHz
Signal Rate
11n: Up to 300 Mbps (Dynamic)
11g: Up to 54 Mbps (Dynamic)
11b: Up to 11 Mbps (Dynamic)
Reception Sensitivity
300M: -68 dBm@10% PER
270M: -68 dBm@10% PER
144M: -71 dBm@10% PER
130M: -71 dBm@10% PER
54M: -74 dBm@10% PER
11M: -86 dBm@8% PER
6M: -90 dBm@10% PER
1M: -94 dBm@8% PER
Transmission Power
≤20 dBm (EIRP)
Wireless Security
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Hardware
Dimensioni (W X D X H)
4.46 × 2.51 × 0.85 in. (without antennas)
4.46 × 3.96 × 7.92 in. (with vertical antennas)
113.2 × 63.8 × 21.7 mm (without antennas)
113.2 × 100.5 × 201.1 mm(with vertical antennas)
Interfaces
Micro USB 2.0
Tipologia di Antenna
External
Other
Certifications
CE, ROHS

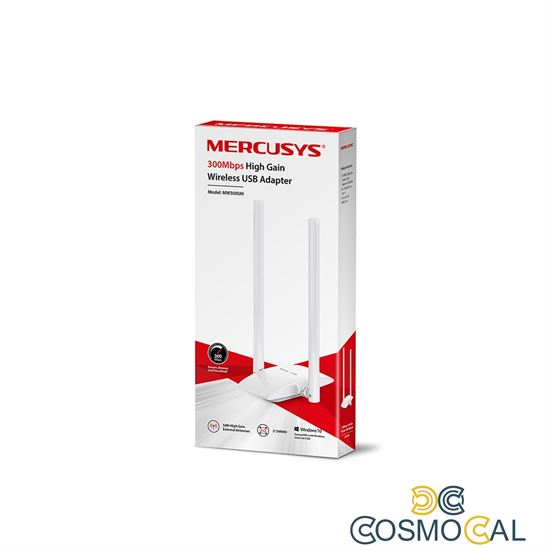

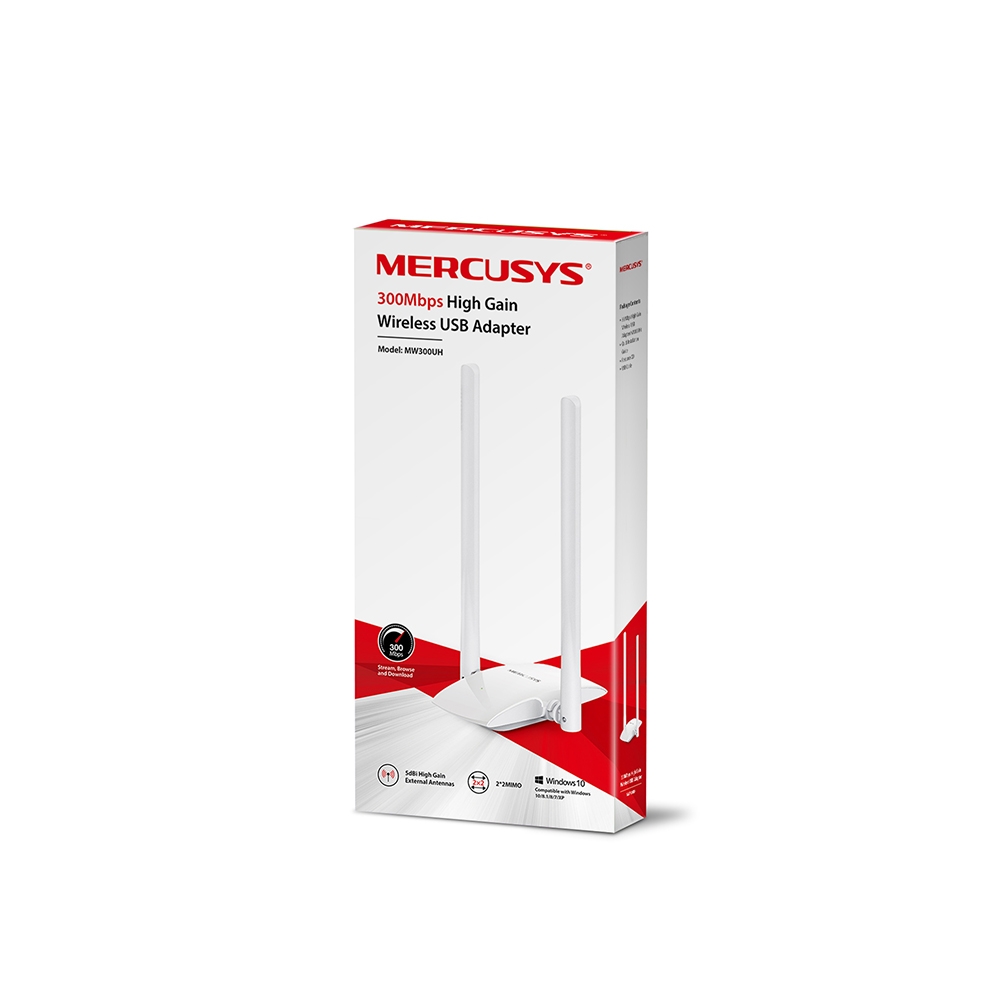

Package Contents
300 Mbps High Gain Wireless USB Adapter (MW300UH)
Quick Installation Guide
Resource CD
USB Cable (Micro USB to USB A)
Environment
Operating temperature: 0â°C ~ 40â°C (32â°F ~ 104â°F)
Storage temperature: -40â°C ~ 70â°C (-40â°F ~ 158â°F)
Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing

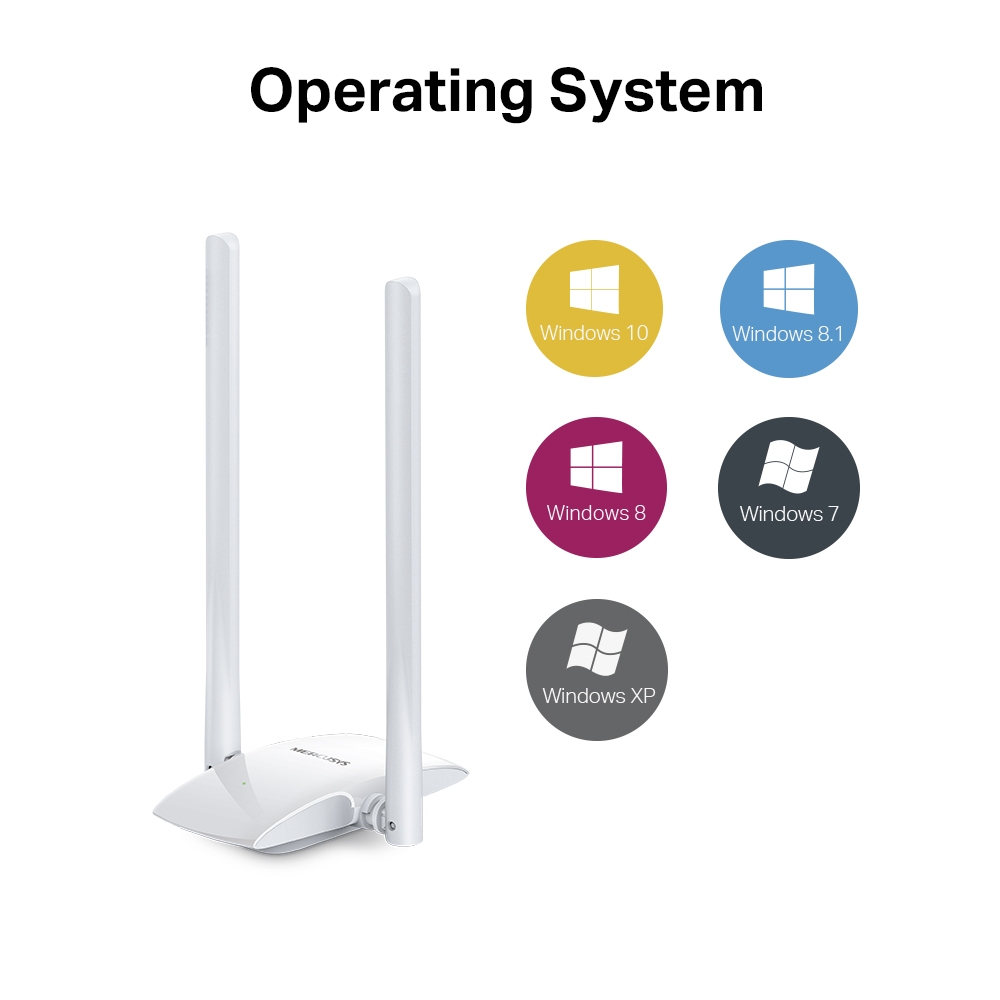

System Requirements
Windows 10/8.1/8/7/XP (32/64 bit)
