DESCRIZIONE

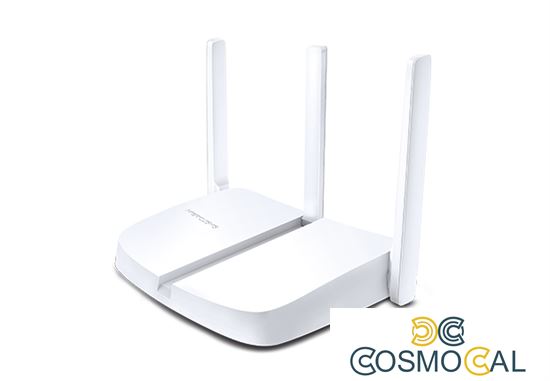

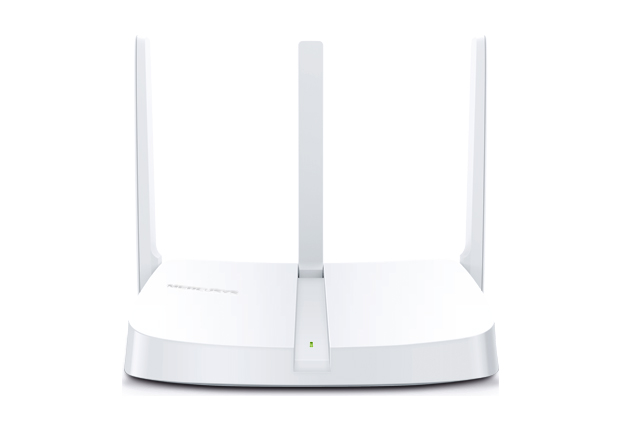

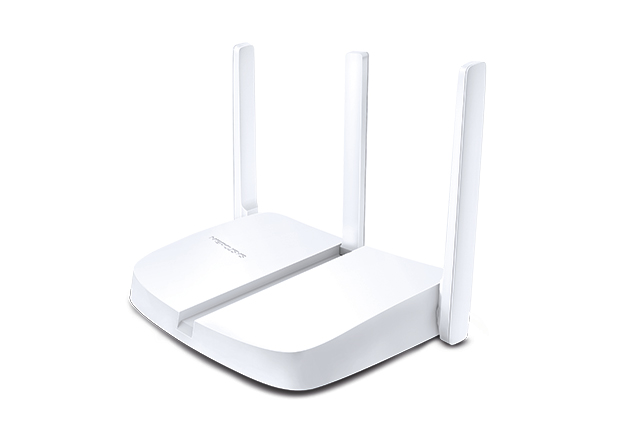

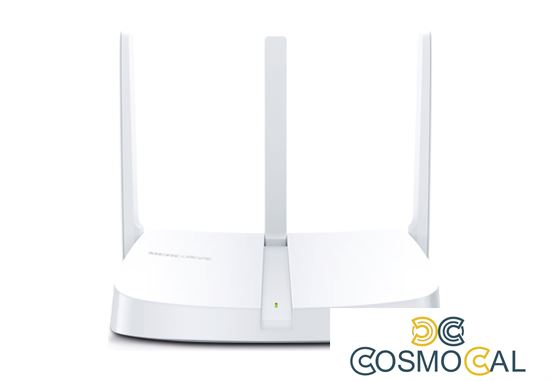

MW305R
Router Wireless N 300Mbps
- Velocità wireless fino a 300Mbps, perfetto per streaming video HD, gaming online e download
- 3 antenne 5dBi per una copertura wireless stabile ed estesa
- Installazione semplice - guida web intuitiva per configurare il Router in pochi istanti
Wireless
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4 - 2.4835GHz
Signal Rate
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -87dBm@8% PER
6M: -90dBm@10% PER
1M: -98dBm@8% PER
Transmission Power
<20dBm
Wireless Security
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Wireless Functions
WDS bridge
Software
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Parental Control
Access control
Local management
Remote management
DHCP
Server
Port Forwarding
Virtual server, UPnP, DMZ
Dynamic DNS
DynDNSã€NO-IP
Firewall Security
IP and MAC address binding
Protocols
IPv4
Guest Network
2.4GHz guest network
Hardware
Dimensioni (W X D X H)
169 x 116 x 35 mm

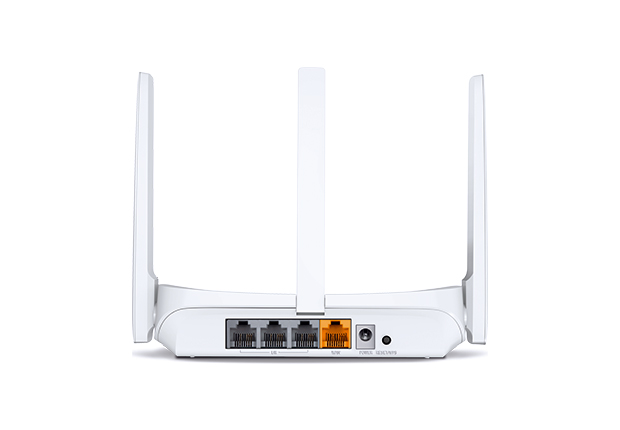

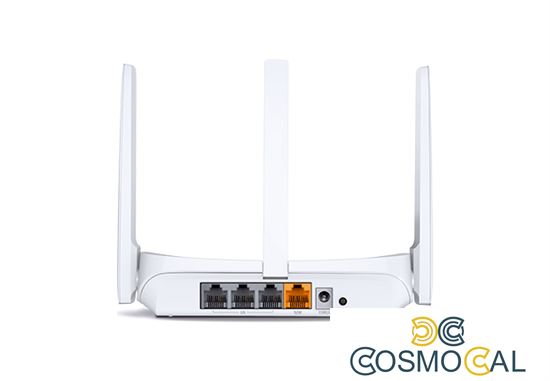

Interfaces
3 10/100Mbps LAN ports
1 10/100Mbps WAN port
Button
Reset/WPS button
External Power Supply
5VDC/0.6A
Tipologia di Antenna
3 x 5dBi fixed omni directional antennas
Other
Certifications
CE, ROHS

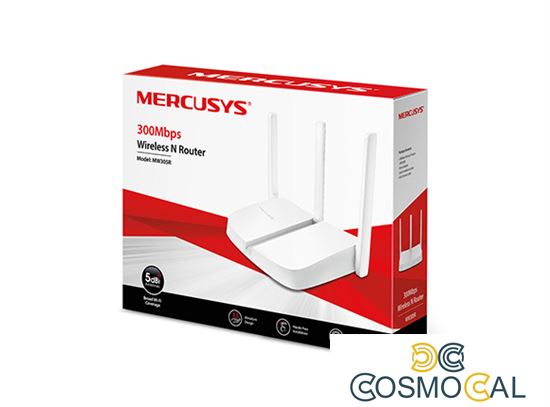

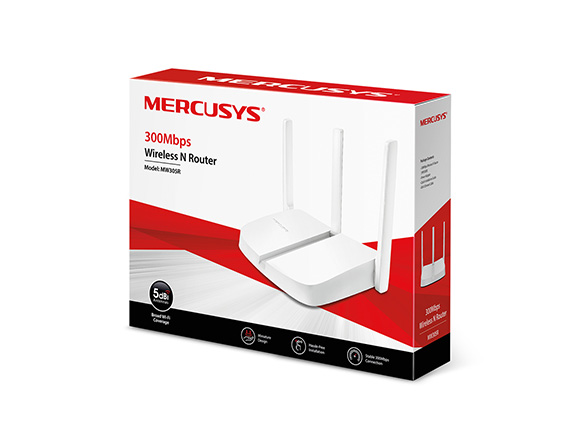

Package Contents
300Mbps Wireless N Router
MW305R
Power adapter
Quick installation guide
Ethernet cable
Environment
Operating temperature: 0â°C ~ 40â°C (32â°F ~ 104â°F)
Storage temperature: -40â°C ~ 70â°C (-40â°F ~ 158â°F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
